Polyurethane(PU) Elastomer Casting Machine

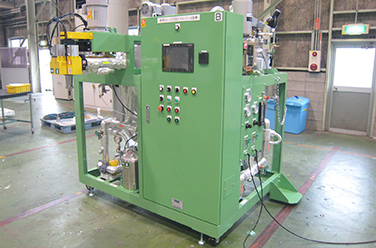

Flexible PU Casting Machine
It is a low pressure foaming machine specializing in polyurethane(PU) elastomers and is one of our core products. It can also be flexibly designed to suit customer needs, with multiple base resins, curing agents, and coloring options.
Knowledge and Experience in Rotor Design
Based on our many years of experience, we have designed smart rotors that can efficiently mix and stir raw materials with different viscosities and mixing ratios, and can also handle high-viscosity raw materials and raw materials containing fillers.
Application
- Rollers, casters, OA equipment parts, abrasives, sheets, etc.
Features

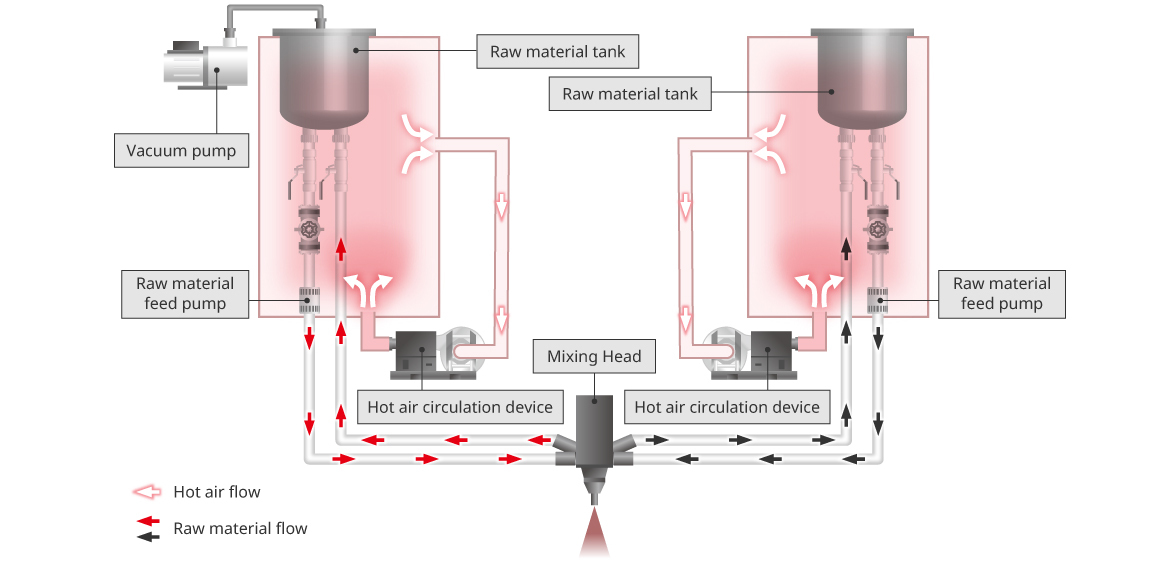

- Raw material temperature control,depending on the application, you can select the double tube method by heat medium oil circulation or the oven method by hot air circulation.
Please contact us for raw materials such as solids at room temperature.
- Raw material feed pump,In addition to precision gear pumps, we will select the most suitable one according to the application. Please contact us for raw materials such as those containing fillers.
- Can also propose automated lines that combine ancillary equipment and blending equipment.
Specification
| Model | Number of ingredients | Injection capacity （Kg/min） |
|---|---|---|
| EA-2001 | 2 | 0.04〜0.1 |
| EA-203 | 2 | 1〜3 |
| EA-205 | 2 | 2.5〜5 |
| EA-215 | 2 | 10〜15 |
| EA-530 | 5 | 15〜30 |
| EA-350 | 3 | 25〜50 |
| EA-3150 | 3 | 100〜150 |
- ※Specifications can be changed according to the application. Please contact us.
