Products & Services

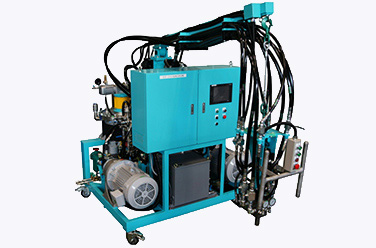

High Pressure Polyurethane(PU) Foaming Machine
Multi-Component PU Machine
Our core product, multi-component high pressure polyurethane foaming machine.
It allows you to differentiate from other companies and meets the high quality standards required for automobile parts production equipment.
High Quality, Long Life, Less and Good Maintenance
Our Japan-quality machines have an extremely long life span, with many customers using them for over 20 years. In addition, by introducing non-seal pumps and remote maintenance function, we can reduce the maintenance burden on our customers.
Application
- Automotive Interior parts, Automotive exterior parts, Insulation/ Building material(sandwich) panel and roof, and Refrigerator and Air Conditioner
Features
- Proven high agitation and high durability mixing head,self-cleaning type non-solvent specification, suitable for high cycle production.
-
Production control system that realizes stable production,settings such as flow rate, compounding ratio, injection seconds, and liquid temperature can be easily changed on the touch panel.
Injection conditions are also feedback controlled to control the flow rate and maintain an accurate compounding ratio and injection amount.
Non-seal pump specifications and remote maintenance function can also be selected as options.

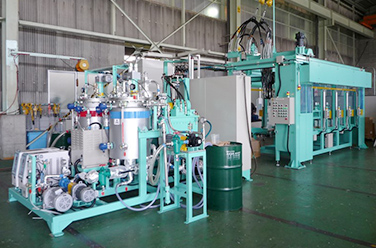

- Can also propose automated lines that combine ancillary equipment, automatic density control (air loading) devices and blending devices that improve productivity.
Specification
| Model | Number of ingredients | Injection capacity （Kg/min） |
|---|---|---|
| NR-205 | 2 | 2～5 |
| NR-210 | 2 | 4～10 |
| NR-230 | 2 | 10～30 |
| NR-260 | 2 | 35～60 |
| NR-430 | 4 | 10～30 |
| NR-630 | 6 | 10～30 |
- ※Specifications can be changed according to the application. Please contact us.
